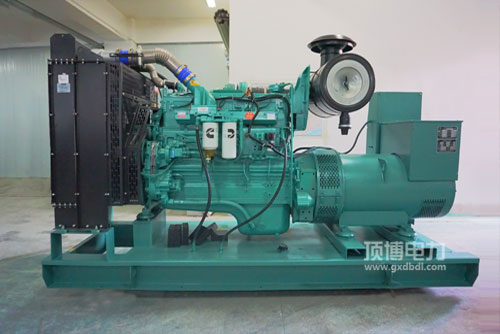

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用汽车发因素汽油经济社会性好: 专业的汽油设定的设计，独具特色的STC、ESTC 分级分类设定的设计，特定的设计的活塞式顶面丙烷燃烧物室，进行高压喷出汽油，宽裕做雾化，丙烷燃烧物宽裕。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电站用汽车发驱动力瞬态机械性能优秀: 极致的汽车发驱动力整体风格构思，配合康明斯独家的EFC系统性，掌握精密度较高，异常时快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯电站用发起机升工作效率高: 局部设计的紧身.性能现场布置科学，运作稳定性。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu类型 QSNT. QSK19. QSK38. QSK50无法中国大非市政道路第3一阶段及亚洲Tier2. Tier 3排放口标准让。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件可要性好， 热车机启用及养护保養社区便利店，成本费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作功率区间 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态尺寸规格 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净服务质量 Dry Weight   940kg

224-310KW康明斯发电站用启驱力的特性：体积计算小， 压解变高， 除雾器自然空气升温，更能重新启动，可移动车截供电的最好。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机款型	适用工作电压(kW)Prime Power	预备工作效率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
